FO and FT – gas filters
FO and FT series filters are designed to separate mechanical impurities from the operating medium in the gaseous state. A filter insert used has the ability to separate mechanical impurities of ≥ 5μm.
Technical parameters
Basic parameters
Maximum working pressure: according to type 4 bar, 6 bar, 16 bar
Filtration insert: 5 µm (standard), 20 µm (on order)
Operating temperature: -20°C to +80°C
Body material: Aluminium alloy
Medium: Gaseous fuels, air
GAS FILTERS with textile insert, separability up to 5 µm
| Code | TYPE | Connection dimension | Operating parameters |
| 44910020 | FO 20F-Z | ¾“ | up to 6 bar
|

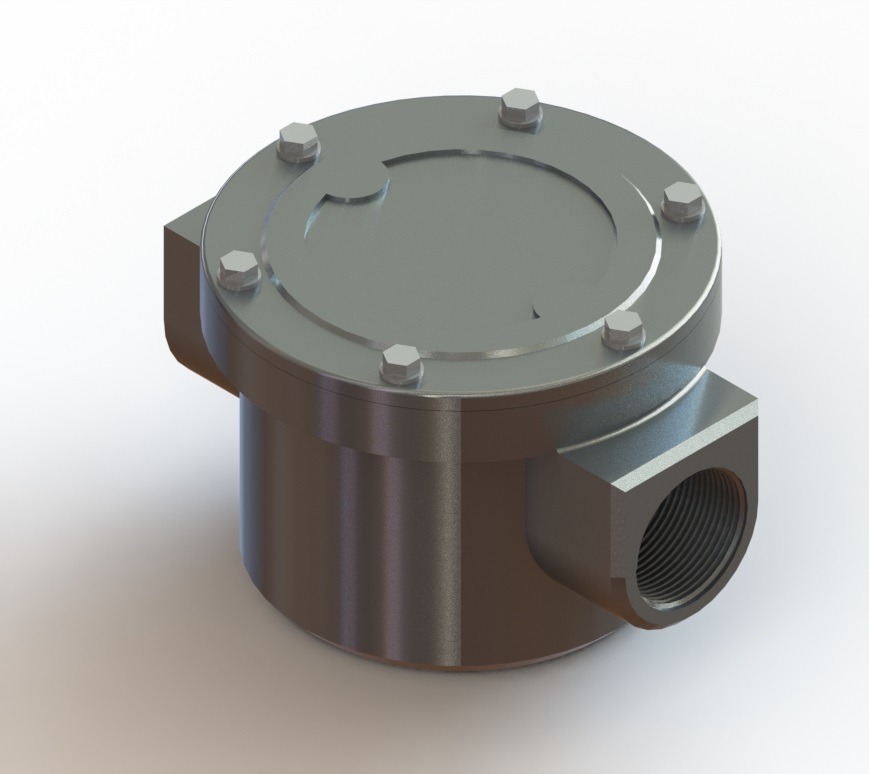

| 44910025 | FO 25F-Z | 1“ | |
| 44910032 | FO 32F-Z | 1-¼ “ | |
| 44910040 | FO 40F-Z | 1-½ “ | |
| 44900051 | FO 50F-Z | Combination of 2“ and DN50 PN6 | |
| 44910050 | FO 50F-K | DN 50 PN 6 | |
| 44900080 | FO 80F | DN 80 PN 6 | |

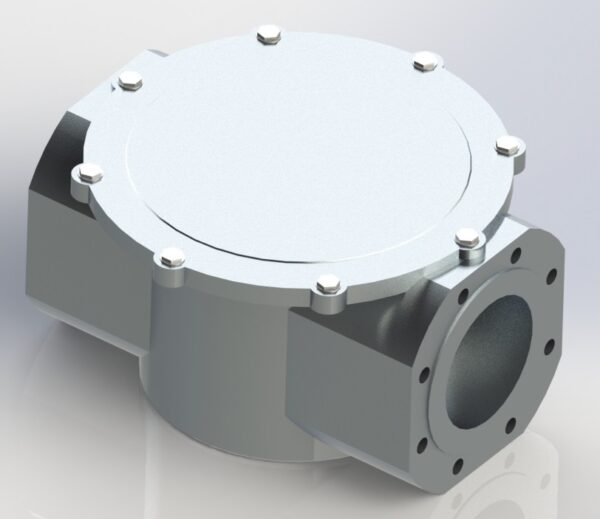

| 44900100 | FO 100F | DN 100 PN 6 | |
| 44900150 | FO 150F | DN 150 PN 4 | up to 4 bar |
| 44900200 | FO 200F | DN 200 PN 4 | |
| 44920050 | FT 50F | DN 50 PN 16 | up to 16 bar |
| 44920080 | FT 80F | DN 80 PN 16 |
